Detector Switch Compact Two-way Operation Type SPVS Series
Features

Achieving long travel stroke of 1.55mm with Alps’s smallest projection area and ease-of-use supporting Normal CLOSE.



  • Equipped with two types of circuits: Normal OPEN and Normal CLOSE.
  • Boasts ALPS’smallest projection area (Dimensions: 3.3×3.5×1mm).
  • Two-way Operation the horizontal and the vertical direction is possible.
  • Double-sided sliding contact provides high reliability.
Applications
  • Detecting opening/closing of covers of digital cameras, mobile phones and more. Detecting the various behaviors of video cameras, digital cameras, mobile phones, MP3 players and more.
Typical Specifications



Items Specifications
Rating (max./min.) (Resistive load) 1mA 5V DC/50BA 3V DC
Operating force 0.35N max.
Total travel 1.55mm
Operating life 50,000 cycles
New Part Numbers



Product No.
Circuit type
Operation direction
Location lug
SPVS120100
Normal CLOSE
Right
With
SPVS120200
Normal CLOSE
Right
Without
SPVS220100
Normal CLOSE
Left
With
SPVS220200
Normal CLOSE
Left
Without
SPVS110100
Normal OPEN
Right
With
SPVS110200
Normal OPEN
Right
Without
SPVS210100
Normal OPEN
Left
With
SPVS210200
Normal OPEN
Left
Without

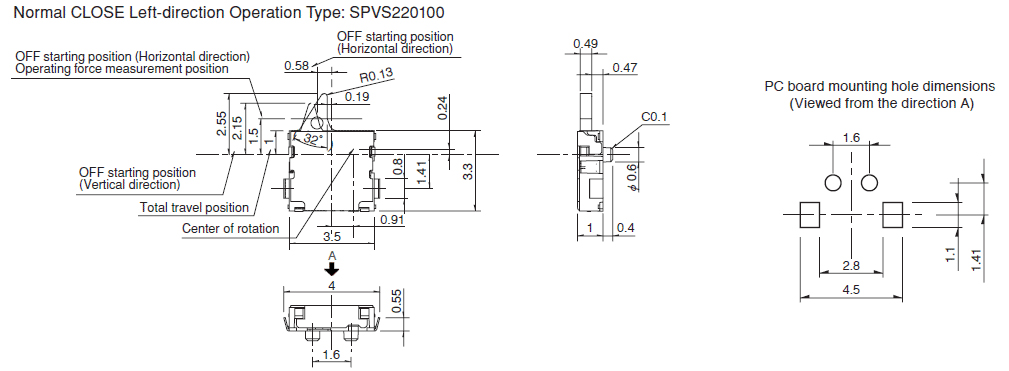

Dimensions (Click to Enlarge)
Documents and Downloads
Document File Type File Size Download
Datasheet PDF 242 KB
