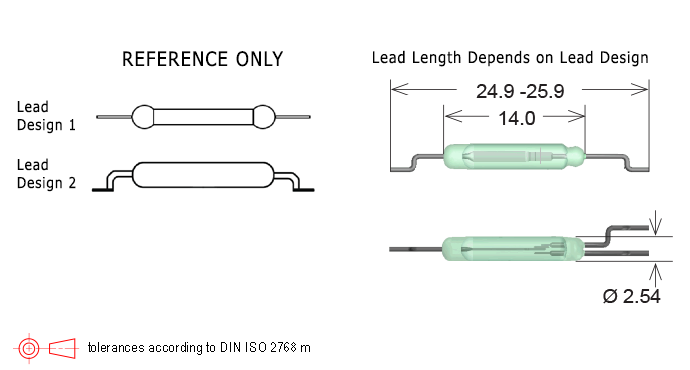

The MK23-90 surface mount reed switch is a (Form C) changeover or single pole double throw SPDT miniature (SMD) surface mount reed switch with glass length of 14mm and diameter of 2.54mm. Rated power 10 W, switching voltage 175 VDC, switching current 0.5 Amp DC. The MK23-90 surface mount reed switch is a bare glass version of our surface mount reed sensors, offering a more economic and compact design as compared to our over-molded reed sensors. Sold in Tape & Reel packing according to IEC 286/part 3 and is suitable for pick and place automation.
Used in On/Off control switch, proximity, motion, position detection in general purpose, appliance, automotive, military and aerospace, safety and security, telecommunications, test and measurement (ATE), transportation applications and much more
