The KSK-1A82 is a high power reed switch with high current capability. Glass length of 16.5mm and diameter of 2.8mm. Rated power 100 W, Switching voltage 120 VDC, Switching current 3 Amp DC.

Automotive and construction machines and direct supply voltage/current switching, direct battery switching, direct load switching for pumps and electro-motors, high power, lamp load switches, test and measurement (ATE)

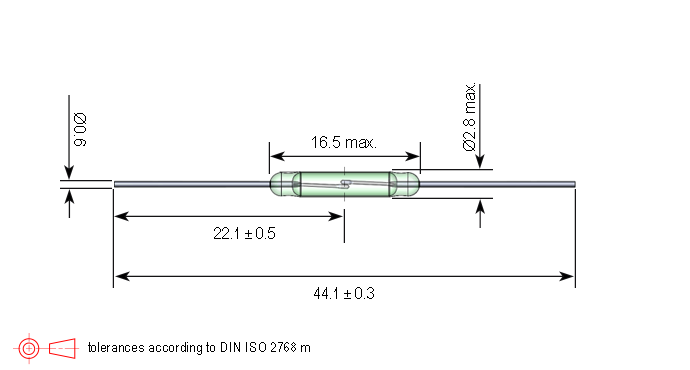

Overall Length mm (inches)	44.1 (1.736)
Glass Length Max. mm (inches)	16.5 (0.649)
Glass Dia. Max. mm (inches)	2.80 (0.110)
Lead Dia. mm (inches)	0.6 (0.023)
Contact Form	1A (SPST) Normally Open (N.O.)
Pull-In Range	20-45 AT
Rated Power Max.	100W/120VDC/3 Amp DC
