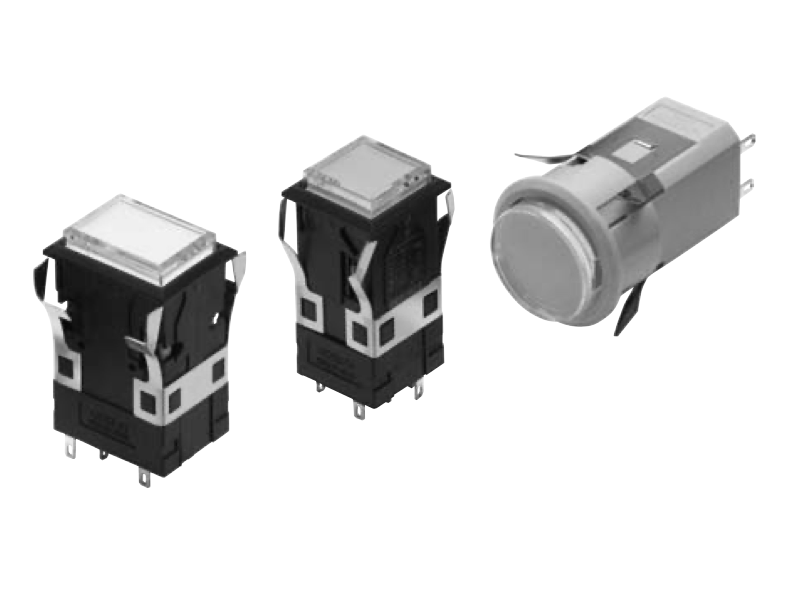

Ratings / Characteristics

Ooperating
frequency		 Mechanical 120 operations/minute max. *1
Electrical 30 operations/minute max.
Insulation resistance 100 MΩ min. (at 500 VDC)
Contact resistance Standard load 40 mΩ max. (initial value)
Microload 100 mΩ max. (initial value)
Dielectric
strength		 Between terminals of same
polarity		 1,000 VAC, 50/60 Hz for 1 minute *2
Between terminals of
different polarity		 2,000 VAC, 50/60 Hz for 1 minute
Between current-carrying
metal part and ground		 2,000 VAC, 50/60 Hz for 1 minute
Between each terminal
and non-current-carrying
metal part		 2,000 VAC, 50/60 Hz for 1 minute
Between lamp terminals 1,000 VAC, 50/60 Hz for 1 minute *3
Vibration
resistanc		 Malfunction 10 to 55 Hz, 1.5 mm double amplitude (1 ms max.)
Shock
resistance		 Destruction 500 m/s2 max.
Malfunction 200 m/s2 max. (1 ms max.)
Life expectancy Mechanical Momentary operation models: 1,000,000 operations min.
Alternate operation models: 200,000 operations min.
(One operation consists of set and reset operations.)
Electrical 100,000 operations min.
Weight Approx. 30 g
Inrush current NC Silver contact: 10 A max.
NO Silver contact: 10 A max.
Ambient operating temperature Bullet Shape LEDs: -10°C to 40°C (with no icing or condensation)
LED Lamps: -10°C to 50°C (with no icing or condensation)
Ambient operating humidity 35% to 85% RH
Ambient storage temperature*1 -25°C to 65°C
Degree of protection*2 IP40
Electric shock protection class Class II
PTI (tracking characteristic) 175
Pollution degree 3 (IEC947-5-1)

*1. With alternate operation models, 60 operations/minute max. One operation cycle consists of set and reset operations.
*2. 600 VAC for microloads.
*3. With no incandescent lamp or LED lamp mounted.

Downloads

Document File Type File Size Download
A3P (Super Luminosity Type) Datasheet PDF 889 KB
