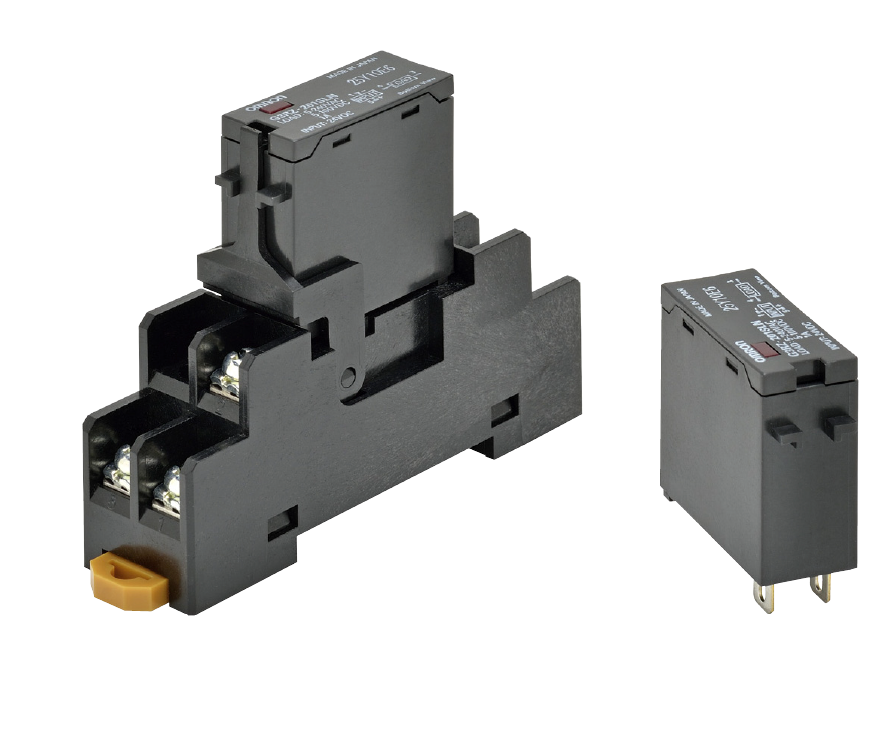

Reduces wiring work by 60% when combined with the P2RF-05-PU Push-In Plus Socket (according to actual OMRON measurements).
Capable of switching 1-A load at 240 VAC or 100 VDC.
Maximum leakage current of 10 μA for OFF output.
Withstand voltage 2,500 VAC between inputs and outputs.
Built-in input resistance and overvoltage absorption circuit.
Capable of AC full-wave rectification and half-wave rectification load operation.

Operate time	6 ms max.
Release time	10 ms max.
Output ON resistance	2.4 Ω max.
OFF leakage current	10 μA max. (at 125 VDC) 100 μA max. (at 200 VAC)
Insulation resistance	100 MΩ min. (at 500 VDC)
Dielectric strength	2,500 VAC at 50/60 Hz for 1 min. between inputs and outputs
Vibration resistance	10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Shock resistance	1000 m/s²
Ambient temperature	Storage: -30 to 100°C (with no icing or condensation) Operating:-30 to +85°C (with no icing or condensation)
Ambient humidity	Operating: 45% to 85%
Weight	Approx. 20 g

Document	File Type	File Size	Download
G3RZ Series Datasheet	PDF	3.4 MB
